MINI Z™
HANDHELD Z BACKSCATTER® SCREENING SYSTEM
THE FIRST Z BACKSCATTER HANDHELD IMAGING SYSTEM, THE MINI Z SYSTEM PROVIDES UNSURPASSED OPERATIONAL
FLEXIBILITY FOR THE DETECTION OF EXPLOSIVES, DRUGS, AND OTHER ORGANIC CONTRABAND IN HARD-TO-REACH AREAS
Self-contained, Portable, Easy to Use
The MINI ZTM system is the world’s first handheld Z Backscatter® imaging system providing unsur- passed operational flexibility. Using the same technology that made the ZBV the top-selling cargo and vehicle inspection system in the world, the MINI Z system’s Z Backscatter technology highlights organic threats and contraband.
With its small form factor and single-sided imag- ing, the MINI Z system can access hard-to-reach areas, allowing for the effective screening of a wide variety of items such as suspicious bags, walls, furniture, small boats, aircraft, vehicle tires, and car interiors.
Unlike density meters, trace detectors, or trans- mission X-ray (Tx) systems, the MINI Z system is the only handheld Backscatter system that can produce images using single-sided imaging to quickly locate hidden potential threats or con- traband behind organic surfaces.
The system’s fast and easy set-up with user- friendly, intuitive interface produces an image much more readily than portable transmission systems. Completely self-contained, with no
required set-up and no consumables to replenish. Simply power the device on and you’re ready to scan for potential threats and contraband.
Z Backscatter Technology

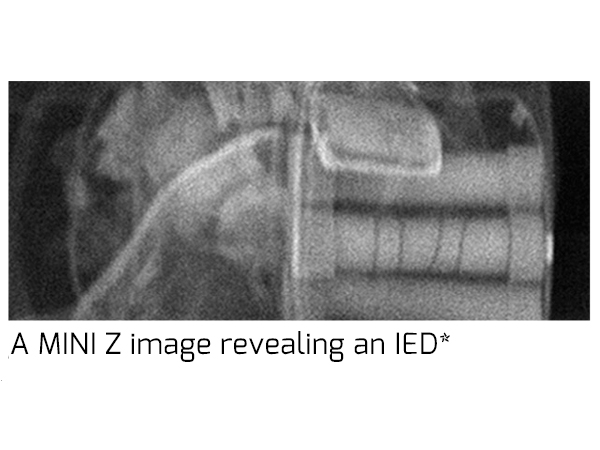

The MINI Z system employs Z Backscatter technology—pioneered and perfected by AS&E. Z Backscatter produces an image and reveals organic threats and contraband that transmission X-ray systems can miss—such as explosives, currency, and drugs.
Safe, Secure, Dependable Operation
The MINI Z system was designed with safety in mind, and features reliable and redundant safety subsystems. The MINI Z system is safe for opera- tors, bystanders, and the environment. The system conforms to applicable ANSI, ICRP, NCRP, and Euratom radiation safety standards for annual allowable dose for the general public. Although the MINI Z system is a low-energy, low-dose Z Backscatter system, it is not designed to scan people. The MINI Z system must be used in accor- dance with the manufacturer’s instructions and applicable laws and regulations.
SYSTEM SPECIFICATIONS
X-ray Source:
10-watt 70 keV X-ray tube
Interconnection options:
Wireless connection through built-in Wi-Fi; optional hard-wire via Ethernet cable
Scanner Dimensions
Length:
29.2 cm (11.5 in)
Width:
24.8 cm (9.8 in)
Height:
19.4 cm (7.6 in)
Weight:
4.2 kg (9.2 lbs)
Scanner Battery:
Operating Battery:
Four hours (typical) per battery; two batteries provided
Scan Speed:
Nominal 15 cm (6 in) per second
Tablet Battery:
Six hours, typical
System Software:
Microsoft Windows 8.1 tablet edition with ASEInspection software
Transport Case Dimensions
Length:
73.7 cm (29.0 in)
Width:
55.9 cm (22.0 in)
Height:
38.1 cm (15.0 in)
Full System Weight:
21.8 kg (48 lbs)
Complies fully with all applicable U.S. federal health and safety regulations:
• ANSI/HPS N43.3-2008 Open System Classification
• Conforms to applicable ANSI, ICRP, NCRP, and Euratom radiation safety standards for annual allowable dose for the general public.
• To help prevent inadvertent X-ray emission, the system is equipped with a series of interlocks and audiovisual indicators.
• Contains no live radiation source
• MINI Z Scanner
• Dell Windows 8.1 Tablet PC with ASEInspection Software
• Rugged Tablet Case with Integrated Stand
• Two Replaceable Batteries
• Battery Charger (with international power cords)
• Transport Case
• Calibration Dock
• Quick-Start Guide
• Shoulder Strap
• Optional Network Cable
Ambient Operating Temperature:
0° C to 45° C (32° F to 113° F)
Storage Temperature:
-40° C to 60° C (-20.2° F to 140° F)
Weather Resistance:
IP54 rated. The MINI Z system can be operated in light precipitation and dusty environments.
ASEInspection Software—Tablet Edition: ASEInspection is the Windows-based application software used to control the system operation, manage the data, and analyze the images.The tablet edition has a contemporary look and feel and has been designed for touch-screen interaction.
System Operation
Main Screen:
Displays system control functions
Scan Screen:
Enables scanner operation and provides real-time image viewing
Status Bar:
Located on the bottom of the screen, displays connection status, battery levels, and links to Wi-Fi connection and system status screens
Status Screen:
Provides system status overview with detailed page tab that displays current status of key system parameters
Tablet Connection:
Connects to the scanner by Wi-Fi or wired Ethernet
GUI Skin Support:
Adjusts the user interface to improve viewability for operation inside with artificial lighting or outdoors with natural light
Data Management
Image Group:
Images of the same object may be collected into their own group
Image Flagging:
Images of interest may be flagged or tagged with an optional comment
Reference Library:
Save your reference images to removable media for quick transfer to other tablets
Image Gallery:
See thumbnails of images to quickly find images of interest
Image Search:
Search for images by date taken, group or comment name, or those that have been flagged
Export Image:
Save images as jpeg files
Backup and Restore:
Backup and restore images to/from removable media
Image Analysis
Touch Zoom:
Zoom images up to 16x magnification by pinching or double tapping
Touch Scrolling:
Flick an image to scroll to another region
Touch Density Expand:
Manually refine image contrast and brightness with your fingers
Auto Enhance:
Applies different levels of contrast to different features in the image, thereby enhancing subtle differences in the image
Dynamic Contrast:
Automatically adjusts image contrast to accommodate different scanning distances and to facilitate image analysis
Negative:
Toggle between the normal, “positive” image or the reverse “negative” image, thereby enhancing subtle density differences
Color Palette:
Adds the ability to evaluate images in greater depth, using color
X-ray Source:
10-watt 70 keV X-ray tube
Interconnection options:
Wireless connection through built-in Wi-Fi; optional hard-wire via Ethernet cable
Scanner Dimensions
Length:
29.2 cm (11.5 in)
Width:
24.8 cm (9.8 in)
Height:
19.4 cm (7.6 in)
Weight:
4.2 kg (9.2 lbs)
Scanner Battery:
Operating Battery:
Four hours (typical) per battery; two batteries provided
Scan Speed:
Nominal 15 cm (6 in) per second
Tablet Battery:
Six hours, typical
System Software:
Microsoft Windows 8.1 tablet edition with ASEInspection software
Transport Case Dimensions
Length:
73.7 cm (29.0 in)
Width:
55.9 cm (22.0 in)
Height:
38.1 cm (15.0 in)
Full System Weight:
21.8 kg (48 lbs)
- Customs enforcement
- Government and high-risk facilities
- VIP, event, and private security
- Public safety
- Security checkpoints
- First responders
- General aviation
- Maritime security
- Public transit
Complies fully with all applicable U.S. federal health and safety regulations:
• ANSI/HPS N43.3-2008 Open System Classification
• Conforms to applicable ANSI, ICRP, NCRP, and Euratom radiation safety standards for annual allowable dose for the general public.
• To help prevent inadvertent X-ray emission, the system is equipped with a series of interlocks and audiovisual indicators.
• Contains no live radiation source
• MINI Z Scanner
• Dell Windows 8.1 Tablet PC with ASEInspection Software
• Rugged Tablet Case with Integrated Stand
• Two Replaceable Batteries
• Battery Charger (with international power cords)
• Transport Case
• Calibration Dock
• Quick-Start Guide
• Shoulder Strap
• Optional Network Cable
Ambient Operating Temperature:
0° C to 45° C (32° F to 113° F)
Storage Temperature:
-40° C to 60° C (-20.2° F to 140° F)
Weather Resistance:
IP54 rated. The MINI Z system can be operated in light precipitation and dusty environments.
ASEInspection Software—Tablet Edition: ASEInspection is the Windows-based application software used to control the system operation, manage the data, and analyze the images.The tablet edition has a contemporary look and feel and has been designed for touch-screen interaction.
System Operation
Main Screen:
Displays system control functions
Scan Screen:
Enables scanner operation and provides real-time image viewing
Status Bar:
Located on the bottom of the screen, displays connection status, battery levels, and links to Wi-Fi connection and system status screens
Status Screen:
Provides system status overview with detailed page tab that displays current status of key system parameters
Tablet Connection:
Connects to the scanner by Wi-Fi or wired Ethernet
GUI Skin Support:
Adjusts the user interface to improve viewability for operation inside with artificial lighting or outdoors with natural light
Data Management
Image Group:
Images of the same object may be collected into their own group
Image Flagging:
Images of interest may be flagged or tagged with an optional comment
Reference Library:
Save your reference images to removable media for quick transfer to other tablets
Image Gallery:
See thumbnails of images to quickly find images of interest
Image Search:
Search for images by date taken, group or comment name, or those that have been flagged
Export Image:
Save images as jpeg files
Backup and Restore:
Backup and restore images to/from removable media
Image Analysis
Touch Zoom:
Zoom images up to 16x magnification by pinching or double tapping
Touch Scrolling:
Flick an image to scroll to another region
Touch Density Expand:
Manually refine image contrast and brightness with your fingers
Auto Enhance:
Applies different levels of contrast to different features in the image, thereby enhancing subtle differences in the image
Dynamic Contrast:
Automatically adjusts image contrast to accommodate different scanning distances and to facilitate image analysis
Negative:
Toggle between the normal, “positive” image or the reverse “negative” image, thereby enhancing subtle density differences
Color Palette:
Adds the ability to evaluate images in greater depth, using color
